GewissGewiss GW62017FH

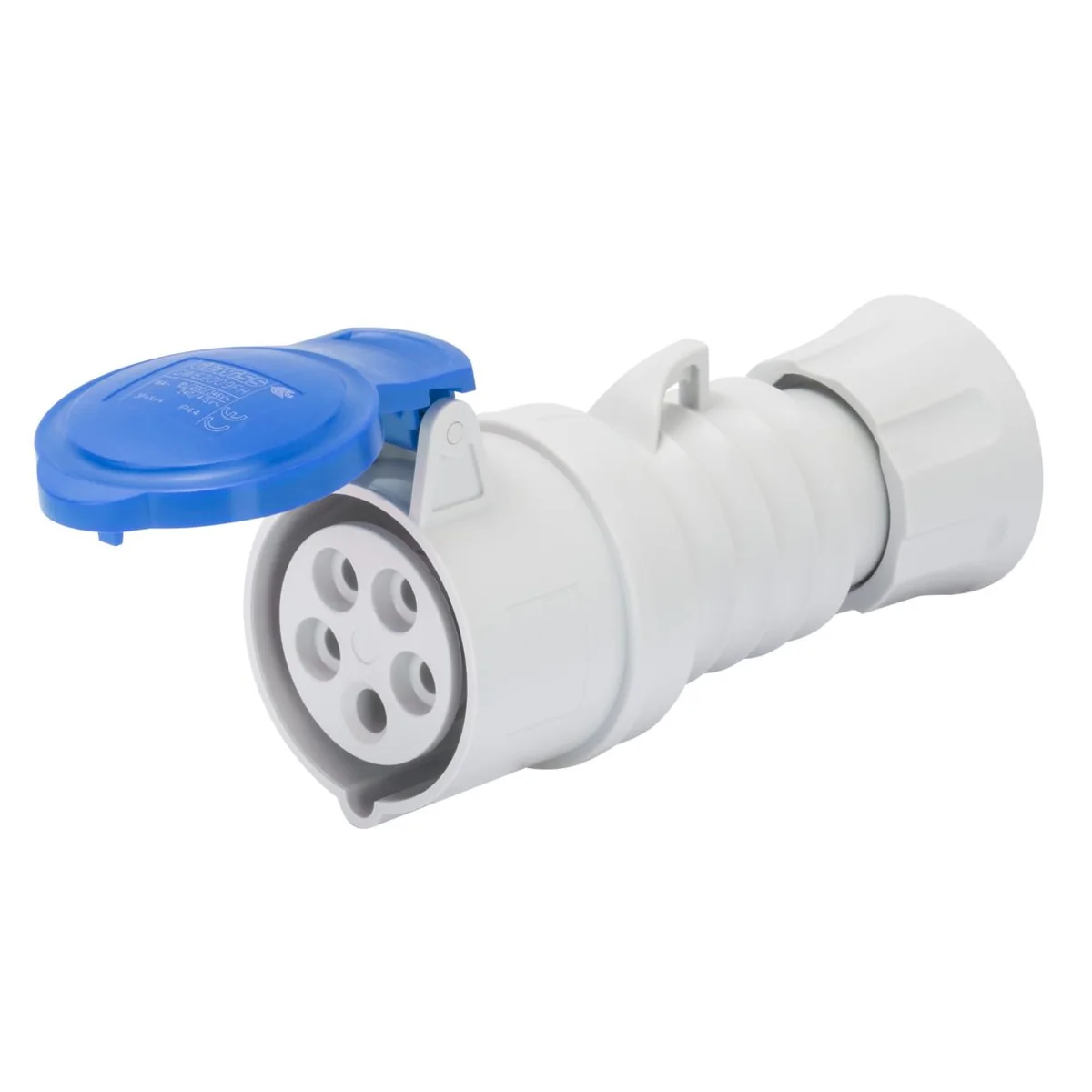

The Gewiss GW62017FH is a straight industrial connector component from the IEC 309 HP range with a 3P+N+E pole configuration and 32A rated current. It is rated for 200-250V at 50/60Hz with an IP44/IP54 degree of protection and features quick spring-terminal wiring. The product is blue, incorporates nickel-plated contacts, and is constructed from halogen-free material in compliance with EN 60754-2.
Gewiss
GW62017FH
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Gewiss GW62017FH reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
19 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Manufacturer Part Number / MPN | GW62017FH | Manufacturer verifiedChecked 2026-07-28 |
| pole count | 3P+N+E | Manufacturer verifiedChecked 2026-07-28 |
| Voltage | 200 - 250 V | Manufacturer verifiedChecked 2026-07-28 |
| cable clamp tightening capacity | 9.2-19.9 mm | Manufacturer verifiedChecked 2026-08-13 |
| colour | Blue | Manufacturer verifiedChecked 2026-08-13 |
| electrocod | 2210 | Manufacturer verifiedChecked 2026-08-13 |
| frequency | 50/60 Hz | Manufacturer verifiedChecked 2026-08-13 |
| glow wire test | 850 °C (active parts) - 650 °C (passive parts) | Manufacturer verifiedChecked 2026-08-13 |
| insulation resistance | > 10 MΩ | Manufacturer verifiedChecked 2026-08-13 |
| ip degree | IP44/IP54 | Manufacturer verifiedChecked 2026-08-13 |
| mechanical resistance | IK09 | Manufacturer verifiedChecked 2026-08-13 |
| no of poles | 3P+N+E | Manufacturer verifiedChecked 2026-08-13 |
| operating temperature | -25 +55 °C | Manufacturer verifiedChecked 2026-08-13 |
| terminal tightening capacity | 2.5-6 mm² flexible cables - 2.5-10 mm² rigid cables | Manufacturer verifiedChecked 2026-08-13 |
| thermo pressure with ball | 125 °C (active parts) - 80 °C (passive parts) | Manufacturer verifiedChecked 2026-08-13 |
| total number of operations | > 2000 | Manufacturer verifiedChecked 2026-08-13 |
| Material | Halogen-free in compliance with EN 60754-2 | Manufacturer verifiedChecked 2026-08-13 |
| type of wiring | Quick, with spring | Manufacturer verifiedChecked 2026-08-13 |
| ware number | 85366990 | Manufacturer verifiedChecked 2026-08-13 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED GEWISS REFERENCES
More Gewiss part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Gewiss GW62017FH is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Gewiss GW62017FH
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Gewiss GW62017FH FAQ
What is Gewiss GW62017FH?
The Gewiss GW62017FH is a straight industrial connector component from the IEC 309 HP range with a 3P+N+E pole configuration and 32A rated current. It is rated for 200-250V at 50/60Hz with an IP44/IP54 degree of protection and features quick spring-terminal wiring. The product is blue, incorporates nickel-plated contacts, and is constructed from halogen-free material in compliance with EN 60754-2.
What are the technical specifications of Gewiss GW62017FH?
Manufacturer Part Number / MPN: GW62017FH; pole count: 3P+N+E; Voltage: 200 - 250 V; cable clamp tightening capacity: 9.2-19.9 mm; colour: Blue; electrocod: 2210; frequency: 50/60 Hz; glow wire test: 850 °C (active parts) - 650 °C (passive parts). The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Gewiss GW62017FH?
Submit the exact reference Gewiss GW62017FH with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
