BeckhoffBeckhoff FC3122

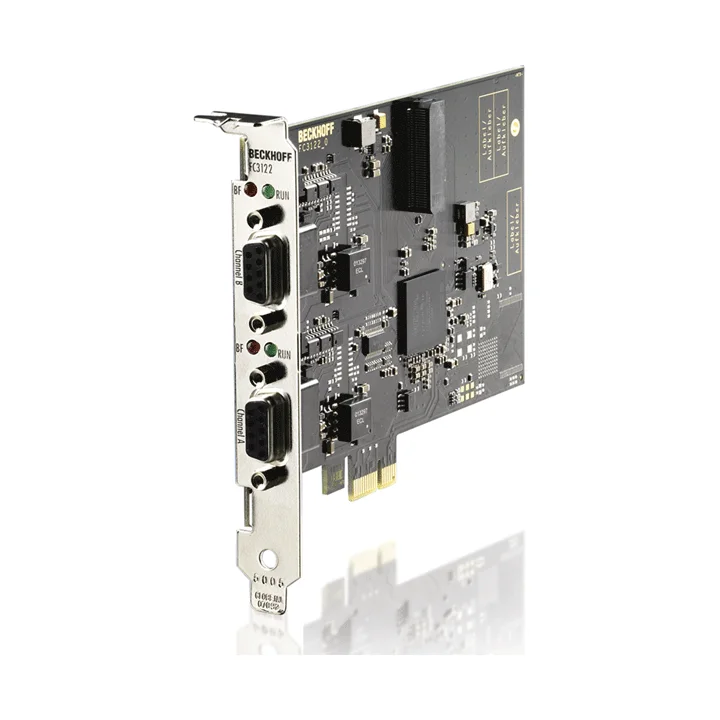

The Beckhoff FC3122 is an industrial PROFIBUS-Master/Slave plug-in card featuring 2 channels and a PCIe x1 PC interface. It supports PROFIBUS DP and DP-V1 with transfer rates from 9,6 kBaud to 12 MBaud. The component is designed as a single slot card with dimensions of approximately 100 mm x 130 mm and operates within a temperature range of 0 to 55 °C.
Beckhoff
FC3122
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff FC3122 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
9 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Dimensions | Single Slot, ca. 100 x 130 mm | Manufacturer verifiedChecked 2026-08-11 |
| bertragungsraten | 9,6 kBaud…12 MBaud | Manufacturer verifiedChecked 2026-08-11 |
| betriebstemperatur | 0…55 °C | Manufacturer verifiedChecked 2026-08-11 |
| breite im prozessabbild | Summe max.: 30,5 kByte Input- und Output-Daten | Manufacturer verifiedChecked 2026-08-11 |
| businterface | 2 x D-Sub-Buchse, 9-polig, galvanisch entkoppelt | Manufacturer verifiedChecked 2026-08-11 |
| feldbus | PROFIBUS DP (Standard), PROFIBUS DP-V1 | Manufacturer verifiedChecked 2026-08-11 |
| hardwarediagnose | 2 LEDs je Kanal | Manufacturer verifiedChecked 2026-08-11 |
| pc schnittstelle | PCI Express x1 | Manufacturer verifiedChecked 2026-08-11 |
| treiber | TwinCAT 2.11 R3 und höher | Manufacturer verifiedChecked 2026-08-11 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff FC3122 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff FC3122
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff FC3122 FAQ
What is Beckhoff FC3122?
The Beckhoff FC3122 is an industrial PROFIBUS-Master/Slave plug-in card featuring 2 channels and a PCIe x1 PC interface. It supports PROFIBUS DP and DP-V1 with transfer rates from 9,6 kBaud to 12 MBaud. The component is designed as a single slot card with dimensions of approximately 100 mm x 130 mm and operates within a temperature range of 0 to 55 °C.
What are the technical specifications of Beckhoff FC3122?
Dimensions: Single Slot, ca. 100 x 130 mm; bertragungsraten: 9,6 kBaud…12 MBaud; betriebstemperatur: 0…55 °C; breite im prozessabbild: Summe max.: 30,5 kByte Input- und Output-Daten; businterface: 2 x D-Sub-Buchse, 9-polig, galvanisch entkoppelt; feldbus: PROFIBUS DP (Standard), PROFIBUS DP-V1; hardwarediagnose: 2 LEDs je Kanal; pc schnittstelle: PCI Express x1. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff FC3122?
Submit the exact reference Beckhoff FC3122 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
