INDUSTRIAL PART REFERENCE
GewissGewiss

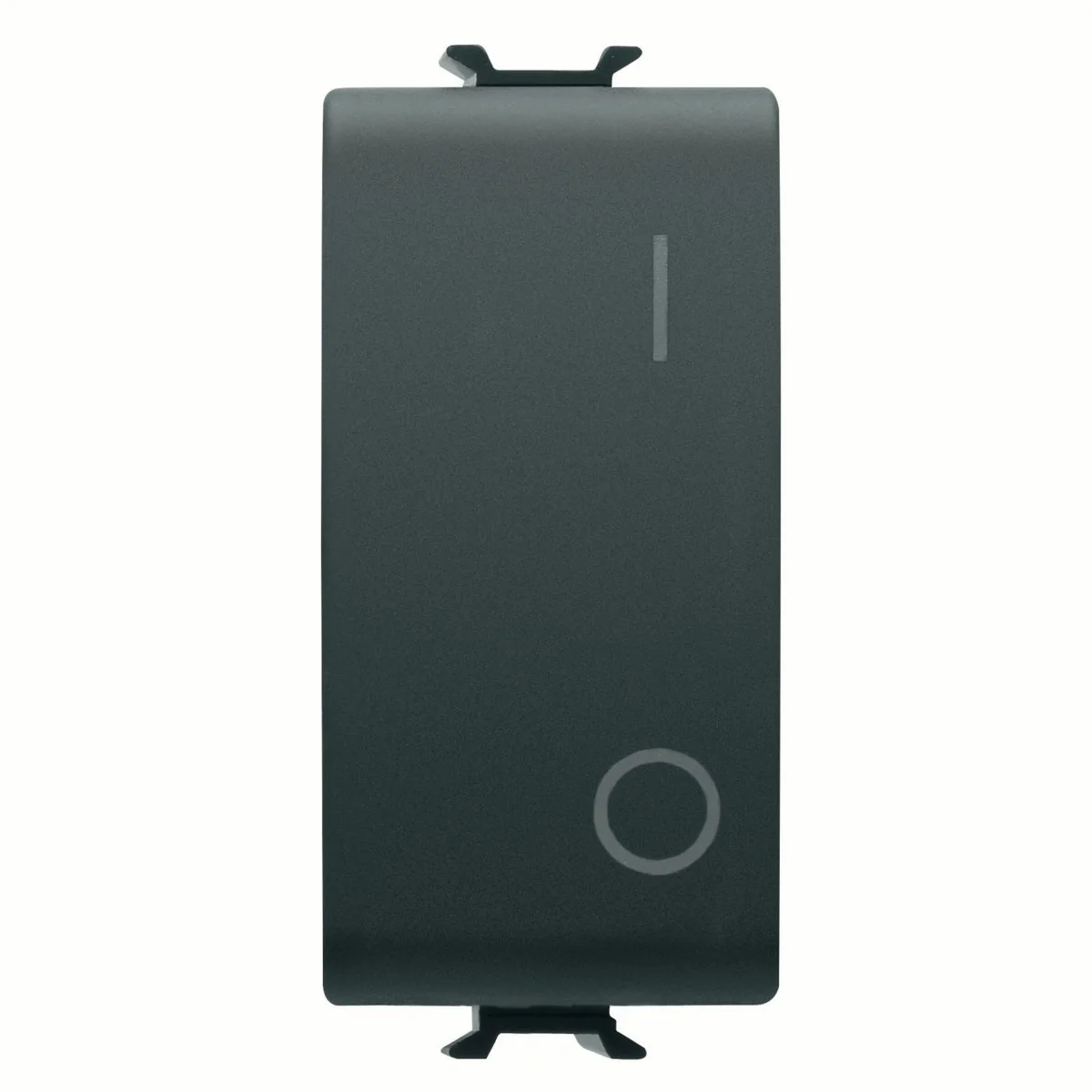

GW12004
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Gewiss GW12004 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
17 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Manufacturer Part Number / MPN | GW12004 | Manufacturer verifiedChecked 2026-07-28 |
| code | GW12004 | Manufacturer verifiedChecked 2026-08-12 |
| electrocod | 0130 | Manufacturer verifiedChecked 2026-08-12 |
| glow wire test | 850 °C | Manufacturer verifiedChecked 2026-08-12 |
| insulation resistance | > 5 MOhm | Manufacturer verifiedChecked 2026-08-12 |
| Material | Technopolymer | Manufacturer verifiedChecked 2026-08-12 |
| prolonged operation switch no of position changes | 40.000 at In 250 V ac cosφ=0.6 | Manufacturer verifiedChecked 2026-08-12 |
| Power | 200 W | Manufacturer verifiedChecked 2026-08-12 |
| Voltage | 2000 V at 50 Hz for 1 minute | Manufacturer verifiedChecked 2026-08-12 |
| standard | EN 60669-1 | Manufacturer verifiedChecked 2026-08-12 |
| terminal grip on cable traction | > 50 N | Manufacturer verifiedChecked 2026-08-12 |
| terminal tightening capacity solid cables | min. 0.5 - max. 2x2.5 mm² | Manufacturer verifiedChecked 2026-08-12 |
| terminal tightening capacity stranded cables | min. 0.75 - max. 2x4 mm² | Manufacturer verifiedChecked 2026-08-12 |
| thermo pressure with ball | 125 °C | Manufacturer verifiedChecked 2026-08-12 |
| Voltage | 250 V ac | Manufacturer verifiedChecked 2026-08-12 |
| ware number | 85365080 | Manufacturer verifiedChecked 2026-08-12 |
| wiring terminals | With screw | Manufacturer verifiedChecked 2026-08-12 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED GEWISS REFERENCES
More Gewiss part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Gewiss GW12004 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Gewiss GW12004
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Gewiss GW12004 FAQ
What is Gewiss GW12004?
2P - 16 AX
What are the technical specifications of Gewiss GW12004?
Manufacturer Part Number / MPN: GW12004; code: GW12004; electrocod: 0130; glow wire test: 850 °C; insulation resistance: > 5 MOhm; Material: Technopolymer; prolonged operation switch no of position changes: 40.000 at In 250 V ac cosφ=0.6; Power: 200 W. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Gewiss GW12004?
Submit the exact reference Gewiss GW12004 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
