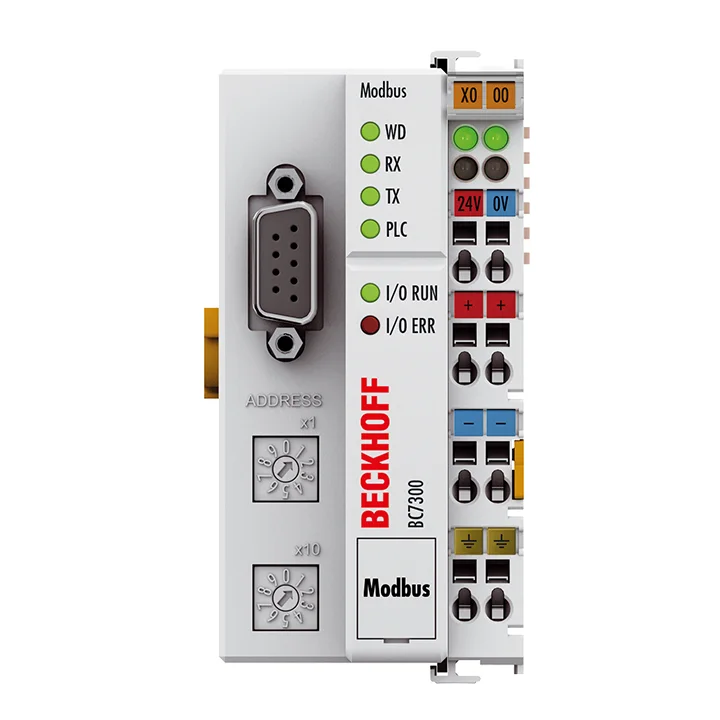

BeckhoffBeckhoff BC7300
info@axiparts.comSend by e-mailThe reference BC7300 identifies an industrial component produced by Beckhoff. The mechanical record lists material polycarbonate. Further documented characteristics are programmspeicher 32/96 kByte, data memory 32/64 kByte, remanente daten 512 Byte, laufzeitsystem 1 SPS-Task, sps zykluszeit approx. 3 ms, anzahl bus terminals 64 and max byte anzahl feldbus 512-Byte-Input and 512-Byte-Output. The same source record continues with digitale peripheriesignale 256, analoge peripheriesignale 128, protokoll RTU/ASCII, bertragungsrate 150, 300, 600, 1200, 2400, 4800, 9600, 19.200, 38.400 Baud and businterface D-Sub, 9-polig, RS485. The record further documents power supply 24 V DC (-15 %/+20 %), eingangsstrom 70 mA + (ges. K-Bus-Strom)/4, 500 mA max., einschaltstrom 2,5 x Dauerstrom, empfohlene back-up fuse ≤ 10 A and power supply k bus 1750 mA. Also captured for this reference are power contacte max. 24 V DC/max. 10 A, electrical isolation 500 V, weight approx. 170 g, operating temperature 0 to 55 °C, storage temperature -25 to +85 °C, relative feuchte 95 and protection class IP20. Verified manufacturer source records back all of the data above; anything the manufacturer does not document is confirmed during RFQ review instead.
Beckhoff
BC7300
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff BC7300 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
22 technical details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Checked 2026-08-02 |
| analoge peripheriesignale | 128 Inputs/Outputs | Checked 2026-09-12 |
| bertragungsrate | 150, 300, 600, 1200, 2400, 4800, 9600, 19.200, 38.400 Baud | Checked 2026-09-12 |
| betriebstemperatur | 0…55 °C | Checked 2026-09-12 |
| businterface | D-Sub, 9-polig, RS485 | Checked 2026-09-12 |
| datenspeicher | 32/64 kByte | Checked 2026-09-12 |
| digitale peripheriesignale | 256 Inputs/Outputs | Checked 2026-09-12 |
| eingangsstrom | 70 mA + (ges. K-Bus-Strom)/4, 500 mA max. | Checked 2026-09-12 |
| einschaltstrom | 2,5 x Dauerstrom | Checked 2026-09-12 |
| empfohlene vorsicherung | ≤ 10 A | Checked 2026-09-12 |
| Weight | ca. 170 g | Checked 2026-09-12 |
| lagertemperatur | -25…+85 °C | Checked 2026-09-12 |
| max byte anzahl feldbus | 512-Byte-Input und 512-Byte-Output | Checked 2026-09-12 |
| potenzialtrennung | 500 V | Checked 2026-09-12 |
| powerkontakte | max. 24 V DC/max. 10 A | Checked 2026-09-12 |
| programmspeicher | 32/96 kByte | Checked 2026-09-12 |
| protokoll | RTU/ASCII | Checked 2026-09-12 |
| remanente daten | 512 Byte | Checked 2026-09-12 |
| schutzart | IP20 | Checked 2026-09-12 |
| spannungsversorgung | 24 V DC (-15 %/+20 %) | Checked 2026-09-12 |
| sps zykluszeit | ca. 3 ms | Checked 2026-09-12 |
| stromversorgung k bus | 1750 mA | Checked 2026-09-12 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff BC7300 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff BC7300
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff BC7300 FAQ
What is Beckhoff BC7300?
The reference BC7300 identifies an industrial component produced by Beckhoff. The mechanical record lists material polycarbonate. Further documented characteristics are programmspeicher 32/96 kByte, data memory 32/64 kByte, remanente daten 512 Byte, laufzeitsystem 1 SPS-Task, sps zykluszeit approx. 3 ms, anzahl bus terminals 64 and max byte anzahl feldbus 512-Byte-Input and 512-Byte-Output. The same source record continues with digitale peripheriesignale 256, analoge peripheriesignale 128, protokoll RTU/ASCII, bertragungsrate 150, 300, 600, 1200, 2400, 4800, 9600, 19.200, 38.400 Baud and businterface D-Sub, 9-polig, RS485. The record further documents power supply 24 V DC (-15 %/+20 %), eingangsstrom 70 mA + (ges. K-Bus-Strom)/4, 500 mA max., einschaltstrom 2,5 x Dauerstrom, empfohlene back-up fuse ≤ 10 A and power supply k bus 1750 mA. Also captured for this reference are power contacte max. 24 V DC/max. 10 A, electrical isolation 500 V, weight approx. 170 g, operating temperature 0 to 55 °C, storage temperature -25 to +85 °C, relative feuchte 95 and protection class IP20. Verified manufacturer source records back all of the data above; anything the manufacturer does not document is confirmed during RFQ review instead.
What are the technical specifications of Beckhoff BC7300?
Material: Polycarbonat; analoge peripheriesignale: 128 Inputs/Outputs; bertragungsrate: 150, 300, 600, 1200, 2400, 4800, 9600, 19.200, 38.400 Baud; betriebstemperatur: 0…55 °C; businterface: D-Sub, 9-polig, RS485; datenspeicher: 32/64 kByte; digitale peripheriesignale: 256 Inputs/Outputs; eingangsstrom: 70 mA + (ges. K-Bus-Strom)/4, 500 mA max.. The full manufacturer specification is confirmed during RFQ review.
