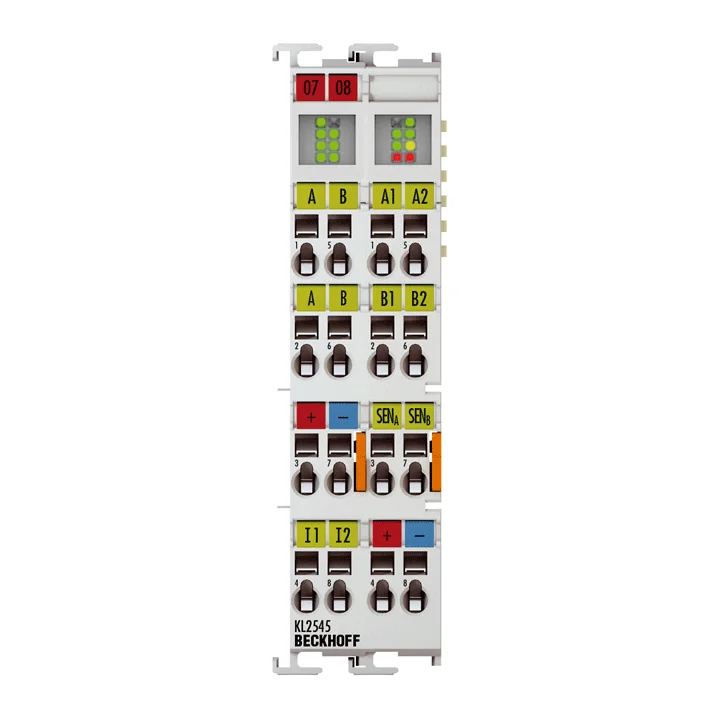

BeckhoffBeckhoff KL2545
The Beckhoff KL2545 is an industrial component designed as a 2-channel PWM output bus terminal with a voltage range of 8 to 50 V DC and a current of 3.5 A, featuring current control. The output stage is short-circuit-proof and thermally overload-safe, and galvanically isolated from the K-Bus. It includes two channels with signal LEDs for local diagnostics and is mounted on a 35 mm DIN rail corresponding to EN 60715.
Beckhoff
KL2545
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff KL2545 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
14 manufacturer-verified details shown below, with 1 more reference field confirmed on RFQ.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 24 x 100 x 68 mm | Manufacturer verifiedChecked 2026-08-16 |
| ausgangsstrom max | 2 x ±3,5 A | Manufacturer verifiedChecked 2026-08-16 |
| betriebstemperatur | -25…+55 °C | Manufacturer verifiedChecked 2026-08-16 |
| breite im prozessabbild | 48 Inputs/Outputs: 2 x 16-Bit-Daten, 2 x 8-Bit-Control/Status | Manufacturer verifiedChecked 2026-08-16 |
| Weight | ca. 100 g | Manufacturer verifiedChecked 2026-08-16 |
| lagertemperatur | -25…+85 °C | Manufacturer verifiedChecked 2026-08-16 |
| lastart | induktiv > 1 mH, Ventile, Spulen | Manufacturer verifiedChecked 2026-08-16 |
| nennspannung | 8…50 V DC | Manufacturer verifiedChecked 2026-08-16 |
| potenzialtrennung | 500 V | Manufacturer verifiedChecked 2026-08-16 |
| product description tr | Beckhoff markasına ait KL2545 parça kodlu endüstriyel bileşen, 8 ila 50 V DC anma gerilimi ve en fazla 2 x ±3,5 A çıkış akımı sunan iki çıkışlı bir üründür. Dayanıklı polikarbonat malzemeden üretilmiş olup IP20 koruma sınıfına sahiptir ve -25 ile +55 °C arasındaki sıcaklıklarda çalışabilir. Cihaz, 36 kHz PWM taktfrekansı, 12 bit maksimum çözünürlük ve 500 V potansiyel ayrım özellikleri ile tasarlanmıştır. Yaklaşık 100 g ağırlığındaki bu model, 24 x 100 x 68 mm boyutlarındadır. | Reference recordChecked 2026-08-26 |
| schutzart | IP20 | Manufacturer verifiedChecked 2026-08-16 |
| stromaufnahme k bus | typ. 100 mA | Manufacturer verifiedChecked 2026-08-16 |
| stromaufnahme powerkontakte | typ. 30 + Last mA | Manufacturer verifiedChecked 2026-08-16 |
| tastverh ltnis | 0…100 % | Manufacturer verifiedChecked 2026-08-16 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff KL2545 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff KL2545
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff KL2545 FAQ
What is Beckhoff KL2545?
The Beckhoff KL2545 is an industrial component designed as a 2-channel PWM output bus terminal with a voltage range of 8 to 50 V DC and a current of 3.5 A, featuring current control. The output stage is short-circuit-proof and thermally overload-safe, and galvanically isolated from the K-Bus. It includes two channels with signal LEDs for local diagnostics and is mounted on a 35 mm DIN rail corresponding to EN 60715.
What are the technical specifications of Beckhoff KL2545?
Material: Polycarbonat; Dimensions: 24 x 100 x 68 mm; ausgangsstrom max: 2 x ±3,5 A; betriebstemperatur: -25…+55 °C; breite im prozessabbild: 48 Inputs/Outputs: 2 x 16-Bit-Daten, 2 x 8-Bit-Control/Status; Weight: ca. 100 g; lagertemperatur: -25…+85 °C; lastart: induktiv > 1 mH, Ventile, Spulen. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff KL2545?
Submit the exact reference Beckhoff KL2545 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
