BeckhoffBeckhoff IE3202

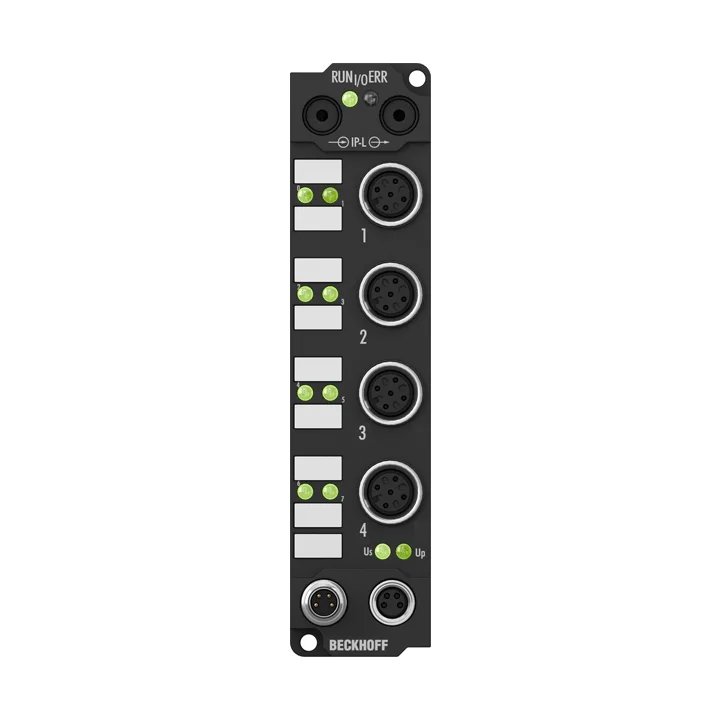

The Beckhoff IE3202 is an industrial expansion box featuring a 4-channel analog input for temperature measurement via RTD (Pt100) sensors and a 16-bit resolution with an M12 connection. It supports direct connection of resistance sensors in 2-, 3-, and 4-wire technology with linearization realized through a microprocessor. The module operates with a nominal voltage of 24 V DC and includes IP-Link interface capabilities with IP65/66/67 protection.
Beckhoff
IE3202
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff IE3202 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
10 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | PA6 (Polyamid) | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 30 mm x 126 mm x 26,5 mm | Manufacturer verifiedChecked 2026-08-18 |
| anschlusstechnik | M12, schraubbar für 2-, 3- und 4-Leiter-Anschlusstechnik, Voreinstellung: 4-Leiter | Manufacturer verifiedChecked 2026-08-18 |
| aufl sung | 0,1 °C pro Digit | Manufacturer verifiedChecked 2026-08-18 |
| messbereich | -250…+850 °C (Pt-Sensoren); -60…+250 °C (Ni-Sensoren) | Manufacturer verifiedChecked 2026-08-18 |
| messstrom | typ. 0,5 mA | Manufacturer verifiedChecked 2026-08-18 |
| nennspannung | 24 V DC (-15 %/+20 %) | Manufacturer verifiedChecked 2026-08-18 |
| schutzart einbaulage | IP65/66/67 (gemäß EN 60529)/beliebig | Manufacturer verifiedChecked 2026-08-18 |
| sensorart | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Widerstandsmessung (z. B. Poti-Anschluss) | Manufacturer verifiedChecked 2026-08-18 |
| wandlungszeit | ca. 250, konfigurierbar bis 65 ms | Manufacturer verifiedChecked 2026-08-18 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff IE3202 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff IE3202
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff IE3202 FAQ
What is Beckhoff IE3202?
The Beckhoff IE3202 is an industrial expansion box featuring a 4-channel analog input for temperature measurement via RTD (Pt100) sensors and a 16-bit resolution with an M12 connection. It supports direct connection of resistance sensors in 2-, 3-, and 4-wire technology with linearization realized through a microprocessor. The module operates with a nominal voltage of 24 V DC and includes IP-Link interface capabilities with IP65/66/67 protection.
What are the technical specifications of Beckhoff IE3202?
Material: PA6 (Polyamid); Dimensions: 30 mm x 126 mm x 26,5 mm; anschlusstechnik: M12, schraubbar für 2-, 3- und 4-Leiter-Anschlusstechnik, Voreinstellung: 4-Leiter; aufl sung: 0,1 °C pro Digit; messbereich: -250…+850 °C (Pt-Sensoren); -60…+250 °C (Ni-Sensoren); messstrom: typ. 0,5 mA; nennspannung: 24 V DC (-15 %/+20 %); schutzart einbaulage: IP65/66/67 (gemäß EN 60529)/beliebig. The full manufacturer specification is confirmed during RFQ review.
