BeckhoffBeckhoff EL9560

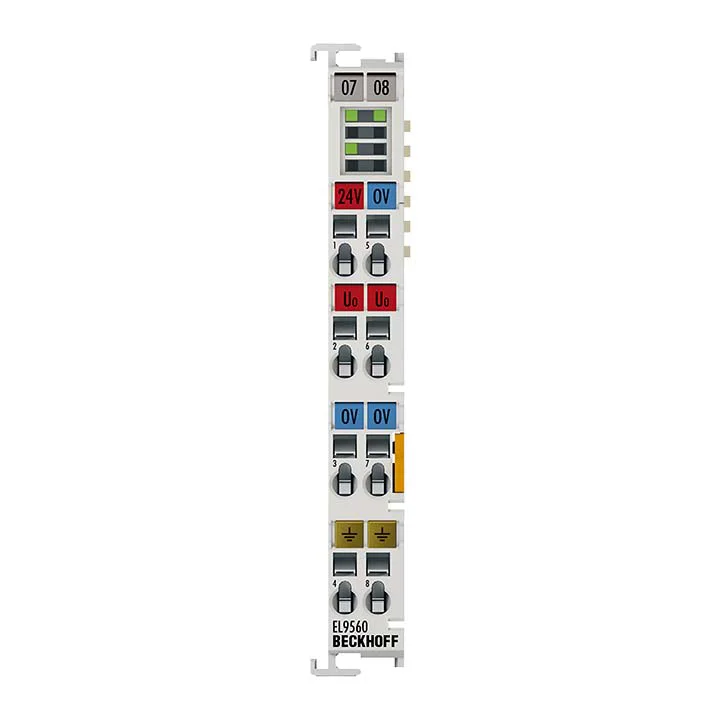

The Beckhoff EL9560 is an industrial EtherCAT terminal power supply unit (type: Industrial Component). It generates a galvanically isolated output voltage of 24 V DC from an input voltage of 24 V DC with a current of 0,1 A. Subsequent EtherCAT terminals are supplied with this voltage via power contacts. It features an automatic restart after short-circuit and U IN /U OUT diagnostics.
Beckhoff
EL9560
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff EL9560 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
11 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 12 mm x 100 mm x 68 mm | Manufacturer verifiedChecked 2026-08-19 |
| ausgangsspannung | 24 V DC (-15 %/+5 %) | Manufacturer verifiedChecked 2026-08-19 |
| ausgangsstrom | ≤ 0,1 A | Manufacturer verifiedChecked 2026-08-19 |
| betriebstemperatur | -25…+55 °C | Manufacturer verifiedChecked 2026-08-19 |
| eingangsspannung | 24 V DC (-15 %/+20 %) | Manufacturer verifiedChecked 2026-08-19 |
| Weight | ca. 65 g | Manufacturer verifiedChecked 2026-08-19 |
| isolationsspannung feldseite e bus | 1.500-V-AC-Dauerbelastung | Manufacturer verifiedChecked 2026-08-19 |
| isolationsspannung in output | 500-V-AC-Dauerbelastung | Manufacturer verifiedChecked 2026-08-19 |
| lagertemperatur | -45…+85 °C | Manufacturer verifiedChecked 2026-08-19 |
| schutzart | IP20 | Manufacturer verifiedChecked 2026-08-19 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff EL9560 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff EL9560
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff EL9560 FAQ
What is Beckhoff EL9560?
The Beckhoff EL9560 is an industrial EtherCAT terminal power supply unit (type: Industrial Component). It generates a galvanically isolated output voltage of 24 V DC from an input voltage of 24 V DC with a current of 0,1 A. Subsequent EtherCAT terminals are supplied with this voltage via power contacts. It features an automatic restart after short-circuit and U IN /U OUT diagnostics.
What are the technical specifications of Beckhoff EL9560?
Material: Polycarbonat; Dimensions: 12 mm x 100 mm x 68 mm; ausgangsspannung: 24 V DC (-15 %/+5 %); ausgangsstrom: ≤ 0,1 A; betriebstemperatur: -25…+55 °C; eingangsspannung: 24 V DC (-15 %/+20 %); Weight: ca. 65 g; isolationsspannung feldseite e bus: 1.500-V-AC-Dauerbelastung. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff EL9560?
Submit the exact reference Beckhoff EL9560 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
