BeckhoffBeckhoff EL7342

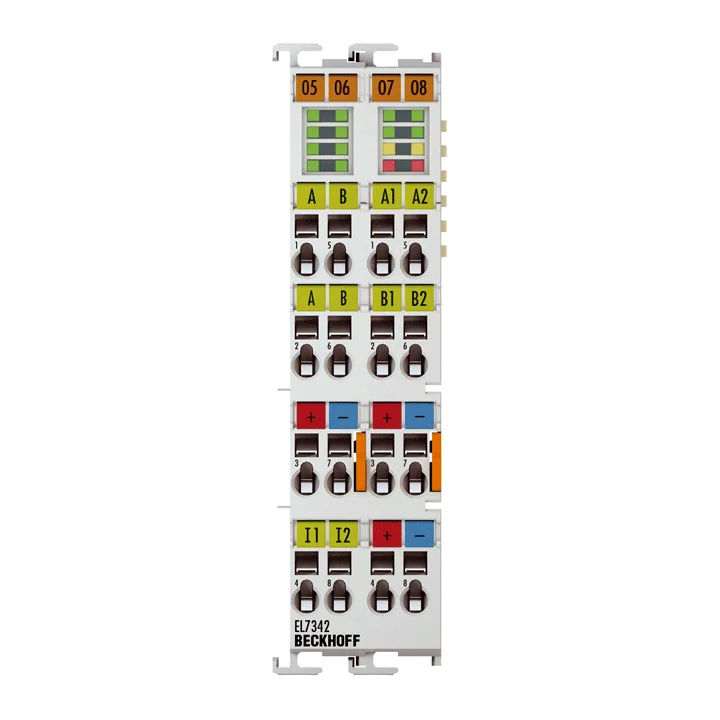

The Beckhoff EL7342 is an EtherCAT terminal functioning as a 2-channel motion interface for DC motors at 48 V DC and 3.5 A. It allows direct operation of two DC motors and provides galvanic isolation to the E-Bus. Speed and position are specified by a 16-bit value from the automation device, and connection of an incremental encoder enables a simple servo axis.
Beckhoff
EL7342
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff EL7342 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
11 manufacturer-verified details shown below, with 1 more reference field confirmed on RFQ.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 24 mm x 100 mm x 68 mm | Manufacturer verifiedChecked 2026-08-20 |
| ausgangsstrom max | 3,5 A pro Kanal | Manufacturer verifiedChecked 2026-08-20 |
| ausgangsstrom mit zb8610 max | 6,5 A pro Kanal | Manufacturer verifiedChecked 2026-08-20 |
| betriebstemperatur | 0…55 °C | Manufacturer verifiedChecked 2026-08-20 |
| lagertemperatur | -25…+85 °C | Manufacturer verifiedChecked 2026-08-20 |
| potenzialtrennung | 500 V | Manufacturer verifiedChecked 2026-08-20 |
| product description tr | Beckhoff markasına ait EL7342 parça kodlu endüstriyel bileşen, polikarbonat malzemeden üretilmiştir. Elektronik besleme gerilimi 24 V DC ve güç besleme gerilimi 8 ile 48 V DC arasındadır. Kanal başına maksimum çıkış akımı 3,5 A olup, ZB8610 ile bu değer 6,5 A seviyesine ulaşır. Ürün, IP20 koruma sınıfına sahip olup 24 mm x 100 mm x 68 mm boyutlarındadır ve ağırlığı 90 gramdır. | Reference recordChecked 2026-08-27 |
| schutzart | IP20 | Manufacturer verifiedChecked 2026-08-20 |
| stromaufnahme e bus | 140 mA | Manufacturer verifiedChecked 2026-08-20 |
| tastverh ltnis | 0…100 % | Manufacturer verifiedChecked 2026-08-20 |
| Power | 8…48 V DC | Manufacturer verifiedChecked 2026-08-20 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff EL7342 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff EL7342
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff EL7342 FAQ
What is Beckhoff EL7342?
The Beckhoff EL7342 is an EtherCAT terminal functioning as a 2-channel motion interface for DC motors at 48 V DC and 3.5 A. It allows direct operation of two DC motors and provides galvanic isolation to the E-Bus. Speed and position are specified by a 16-bit value from the automation device, and connection of an incremental encoder enables a simple servo axis.
What are the technical specifications of Beckhoff EL7342?
Material: Polycarbonat; Dimensions: 24 mm x 100 mm x 68 mm; ausgangsstrom max: 3,5 A pro Kanal; ausgangsstrom mit zb8610 max: 6,5 A pro Kanal; betriebstemperatur: 0…55 °C; lagertemperatur: -25…+85 °C; potenzialtrennung: 500 V; schutzart: IP20. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff EL7342?
Submit the exact reference Beckhoff EL7342 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
