INDUSTRIAL PART REFERENCE
BeckhoffBeckhoff EK1818

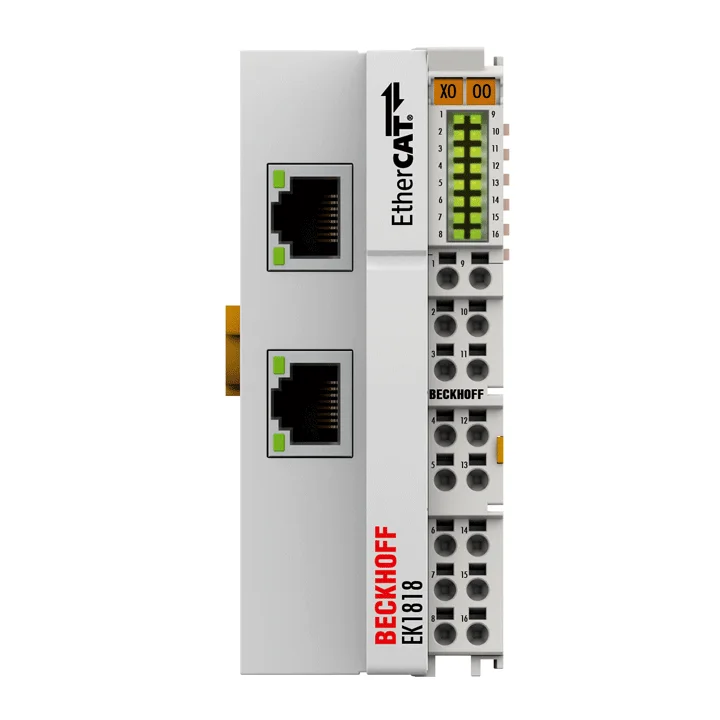

The Beckhoff EK1818 is an EtherCAT coupler with integrated digital inputs and outputs, serving as a link between the EtherCAT protocol on the fieldbus level and EtherCAT terminals. It features 8 digital inputs and 4 digital outputs in a compact High Density housing. The coupler converts telegrams from 100BASE-TX Ethernet to E-Bus signal representation and includes two RJ45 sockets for network connection and optional device cascading.
Beckhoff
EK1818
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff EK1818 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
11 manufacturer-verified details shown below.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 44 x 100 x 67 mm | Manufacturer verifiedChecked 2026-08-24 |
| anzahl der ethercat klemmen im gesamtsystem | bis zu 65.535 | Manufacturer verifiedChecked 2026-08-24 |
| bertragungsrate | 100 MBit/s | Manufacturer verifiedChecked 2026-08-24 |
| betriebstemperatur | -25…+60 °C | Manufacturer verifiedChecked 2026-08-24 |
| lagertemperatur | -40…+85 °C | Manufacturer verifiedChecked 2026-08-24 |
| nennspannung | 24 V DC (-15 %/+20 %) | Manufacturer verifiedChecked 2026-08-24 |
| schutzart | IP20 | Manufacturer verifiedChecked 2026-08-24 |
| stromversorgung e bus | 1000 mA | Manufacturer verifiedChecked 2026-08-24 |
| verbindungsl ngen | bis zu 100 m | Manufacturer verifiedChecked 2026-08-24 |
| verbindungstechnik | 2 x RJ45-Buchse | Manufacturer verifiedChecked 2026-08-24 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff EK1818 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff EK1818
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff EK1818 FAQ
What is Beckhoff EK1818?
The Beckhoff EK1818 is an EtherCAT coupler with integrated digital inputs and outputs, serving as a link between the EtherCAT protocol on the fieldbus level and EtherCAT terminals. It features 8 digital inputs and 4 digital outputs in a compact High Density housing. The coupler converts telegrams from 100BASE-TX Ethernet to E-Bus signal representation and includes two RJ45 sockets for network connection and optional device cascading.
What are the technical specifications of Beckhoff EK1818?
Material: Polycarbonat; Dimensions: 44 x 100 x 67 mm; anzahl der ethercat klemmen im gesamtsystem: bis zu 65.535; bertragungsrate: 100 MBit/s; betriebstemperatur: -25…+60 °C; lagertemperatur: -40…+85 °C; nennspannung: 24 V DC (-15 %/+20 %); schutzart: IP20. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff EK1818?
Submit the exact reference Beckhoff EK1818 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
