INDUSTRIAL PART REFERENCE
BeckhoffBeckhoff BC5150

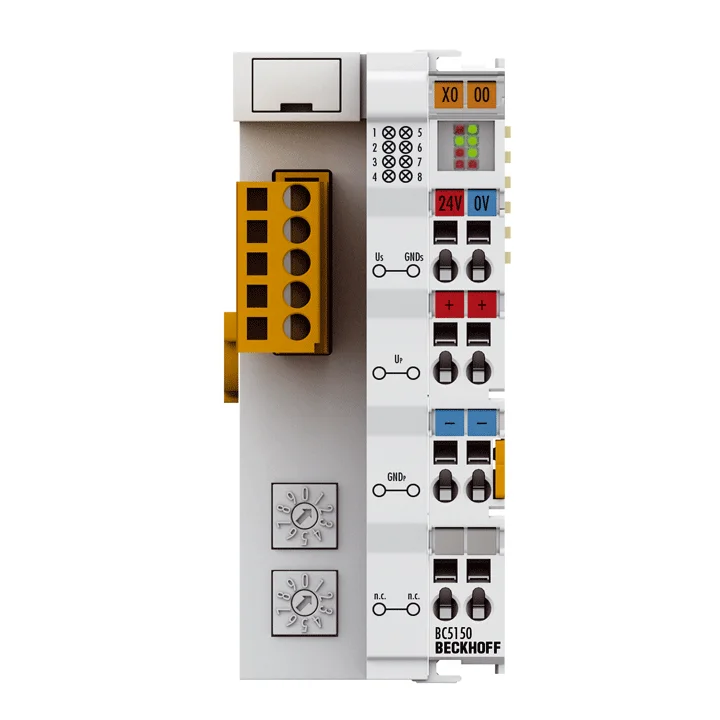

The Beckhoff BC5150 is a CANopen-Compact-Bus Terminal Controller of industrial component type that integrates PLC functionality into a bus coupler. It features automatic baud rate detection up to 1 MBaud, two address selector switches, and programming via TwinCAT 2 according to IEC 61131-3. The unit is housed in a compact polycarbonate enclosure measuring 44 mm x 100 mm x 68 mm with an IP20 protection rating.
Beckhoff
BC5150
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff BC5150 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
15 manufacturer-verified details shown below, with 1 more reference field confirmed on RFQ.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| Dimensions | 44 mm x 100 mm x 68 mm | Manufacturer verifiedChecked 2026-08-18 |
| analoge peripheriesignale | 1024 Inputs/Outputs | Manufacturer verifiedChecked 2026-08-18 |
| bertragungsrate | automatische Erkennung bis 1 MBaud | Manufacturer verifiedChecked 2026-08-18 |
| betriebstemperatur | -25…+60 °C | Manufacturer verifiedChecked 2026-08-18 |
| businterface | Open-Style-Connector, 5-polig | Manufacturer verifiedChecked 2026-08-18 |
| digitale peripheriesignale | 2.040 Inputs/Outputs | Manufacturer verifiedChecked 2026-08-18 |
| eingangsstrom | 60 mA + (ges. K-Bus-Strom)/4 | Manufacturer verifiedChecked 2026-08-18 |
| Weight | ca. 100 g | Manufacturer verifiedChecked 2026-08-18 |
| lagertemperatur | -40…+85 °C | Manufacturer verifiedChecked 2026-08-18 |
| max byte anzahl prozessabbild | 512 Byte-Input und 512-Byte-Output | Manufacturer verifiedChecked 2026-08-18 |
| potenzialtrennung | 500 V | Manufacturer verifiedChecked 2026-08-18 |
| product description tr | Beckhoff markasına ait BC5150 parça kodlu endüstriyel bileşen, polikarbonat malzemeden üretilmiş gövde yapısına sahiptir. Ürün, 48 kByte program belleği ve 32 kByte veri belleği ile birlikte 2 kByte kalıcı veri kapasitesi sunar. 24 V DC gerilimle çalışan bu model, otomatik algılama özelliği sayesinde 1 MBaud değerine kadar aktarım hızı sağlar. Cihaz, -25 ile +60 derece arasındaki çalışma sıcaklığı aralığında faaliyet gösterecek şekilde tasarlanmıştır. | Reference recordChecked 2026-08-25 |
| schutzart einbaulage | IP20/beliebig | Manufacturer verifiedChecked 2026-08-18 |
| sps zykluszeit | ca. 3 ms für 1.000 Befehle | Manufacturer verifiedChecked 2026-08-18 |
| stromversorgung k bus | 1750 mA | Manufacturer verifiedChecked 2026-08-18 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff BC5150 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff BC5150
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff BC5150 FAQ
What is Beckhoff BC5150?
The Beckhoff BC5150 is a CANopen-Compact-Bus Terminal Controller of industrial component type that integrates PLC functionality into a bus coupler. It features automatic baud rate detection up to 1 MBaud, two address selector switches, and programming via TwinCAT 2 according to IEC 61131-3. The unit is housed in a compact polycarbonate enclosure measuring 44 mm x 100 mm x 68 mm with an IP20 protection rating.
What are the technical specifications of Beckhoff BC5150?
Material: Polycarbonat; Dimensions: 44 mm x 100 mm x 68 mm; analoge peripheriesignale: 1024 Inputs/Outputs; bertragungsrate: automatische Erkennung bis 1 MBaud; betriebstemperatur: -25…+60 °C; businterface: Open-Style-Connector, 5-polig; digitale peripheriesignale: 2.040 Inputs/Outputs; eingangsstrom: 60 mA + (ges. K-Bus-Strom)/4. The full manufacturer specification is confirmed during RFQ review.
How can I request a quote for Beckhoff BC5150?
Submit the exact reference Beckhoff BC5150 with quantity and destination country through the RFQ form on this page. Initial response arrives within 0-4 hours; price, availability and lead time are confirmed in a written quotation.
