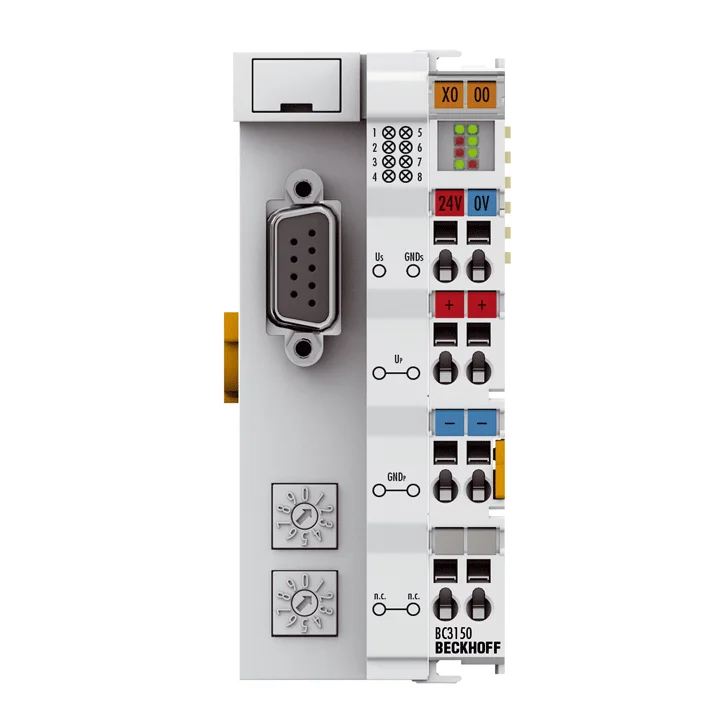

BeckhoffBeckhoff BC3150
The Beckhoff BC3150 is a PROFIBUS Bus Terminal Controller designed as an industrial component and intelligent slave with integrated PLC functionality. It features a PROFIBUS fieldbus interface with automatic baud rate detection up to 12 MBaud and supports up to 64 terminals, or 255 terminals with a K-bus extension. Programming is performed using TwinCAT 2 according to IEC 61131-3 via the configuration and programming interface or the fieldbus.
Beckhoff
BC3150
Industrial component
PROCUREMENT NOTE
Accurate identification before quotation
The complete Beckhoff BC3150 reference is used as the starting point for sourcing. Price, availability, lead time and application-specific compatibility are confirmed during quotation review.
20 manufacturer-verified details shown below, with 1 more reference field confirmed on RFQ.
TECHNICAL DATA AND EVIDENCE
Technical properties and reference data
| Property | Value | Evidence |
|---|---|---|
| Material | Polycarbonat | Manufacturer verifiedChecked 2026-08-02 |
| analogue peripheral signals | 128 Inputs/Outputs | Manufacturer verifiedChecked 2026-08-17 |
| bus interface | 1 x D-Sub socket, 9-pin | Manufacturer verifiedChecked 2026-08-17 |
| digital peripheral signals | 2.040 Inputs/Outputs | Manufacturer verifiedChecked 2026-08-17 |
| Dimensions | 44 x 100 x 68 mm | Manufacturer verifiedChecked 2026-08-17 |
| Current | 320 mA max. | Manufacturer verifiedChecked 2026-08-17 |
| Current | 2,5 x continuous current | Manufacturer verifiedChecked 2026-08-17 |
| max byte count fieldbus | 128-Byte-Input and 128-Byte-Output | Manufacturer verifiedChecked 2026-08-17 |
| max byte count process image | 512-Byte-Input and 512-Byte-Output | Manufacturer verifiedChecked 2026-08-17 |
| number of bus terminals | 64 (255 with K-bus extension) | Manufacturer verifiedChecked 2026-08-17 |
| operating temperature | -25…+60 °C | Manufacturer verifiedChecked 2026-08-17 |
| potential isolation | 500 V | Manufacturer verifiedChecked 2026-08-17 |
| Power | max. 24 V DC/max. 10 A | Manufacturer verifiedChecked 2026-08-17 |
| Power | 24 V DC (-15 %/+20 %) | Manufacturer verifiedChecked 2026-08-17 |
| Power | 1750 mA | Manufacturer verifiedChecked 2026-08-17 |
| product description tr | Beckhoff markasına ait BC3150 parça kodlu endüstriyel bileşen, dayanıklı polikarbonat malzemeden üretilmiştir ve yaklaşık 100 gram ağırlığa sahiptir. Cihaz; 48 kilobayt program belleği, 32 kilobayt veri belleği ve 2 kilobayt kalıcı veri kapasitesi ile donatılmıştır. 24 Volt Doğru Akım güç kaynağı ile çalışan bu ürün, 1 adet 9 pinli D-Sub soket bus arayüzü üzerinden maksimum 12 Megabaud hızına kadar otomatik algılama destekler. K-bus uzantısı ile 255 adede kadar çıkabilen bus klemens sayısı, 512 bayt giriş ve çıkış süreç imajı kapasitesi sunar. | Reference recordChecked 2026-08-25 |
| protection class | IP20 | Manufacturer verifiedChecked 2026-08-17 |
| sps cycle time | ca. 3 ms | Manufacturer verifiedChecked 2026-08-17 |
| storage temperature | -40…+85 °C | Manufacturer verifiedChecked 2026-08-17 |
| transmission rate | automatic detection up to max. 12 MBaud | Manufacturer verifiedChecked 2026-08-17 |
| weight | ca. 100 g | Manufacturer verifiedChecked 2026-08-17 |
Revisions and regional variants may exist. Send an RFQ with the exact part number and quantity for final confirmation.
Request technical confirmation →RELATED BECKHOFF REFERENCES
More Beckhoff part-number records
STOCK & WORLDWIDE DELIVERY
Warehouse stock review and door-to-door delivery
Stock for Beckhoff BC3150 is reviewed against warehouse and supplier-side options (US, Germany, Türkiye, Dubai), with worldwide door-to-door delivery and export terms confirmed in the written quotation. See global operations for the full process.
REQUEST THIS EXACT REFERENCE
RFQ for Beckhoff BC3150
Price, availability and lead time are confirmed only after the exact reference, requested quantity and delivery destination are reviewed. Axiparts is an independent industrial sourcing platform unless a written quotation states otherwise.
Beckhoff BC3150 FAQ
What is Beckhoff BC3150?
The Beckhoff BC3150 is a PROFIBUS Bus Terminal Controller designed as an industrial component and intelligent slave with integrated PLC functionality. It features a PROFIBUS fieldbus interface with automatic baud rate detection up to 12 MBaud and supports up to 64 terminals, or 255 terminals with a K-bus extension. Programming is performed using TwinCAT 2 according to IEC 61131-3 via the configuration and programming interface or the fieldbus.
What are the technical specifications of Beckhoff BC3150?
Material: Polycarbonat; analogue peripheral signals: 128 Inputs/Outputs; bus interface: 1 x D-Sub socket, 9-pin; digital peripheral signals: 2.040 Inputs/Outputs; Dimensions: 44 x 100 x 68 mm; Current: 320 mA max.; Current: 2,5 x continuous current; max byte count fieldbus: 128-Byte-Input and 128-Byte-Output. The full manufacturer specification is confirmed during RFQ review.
